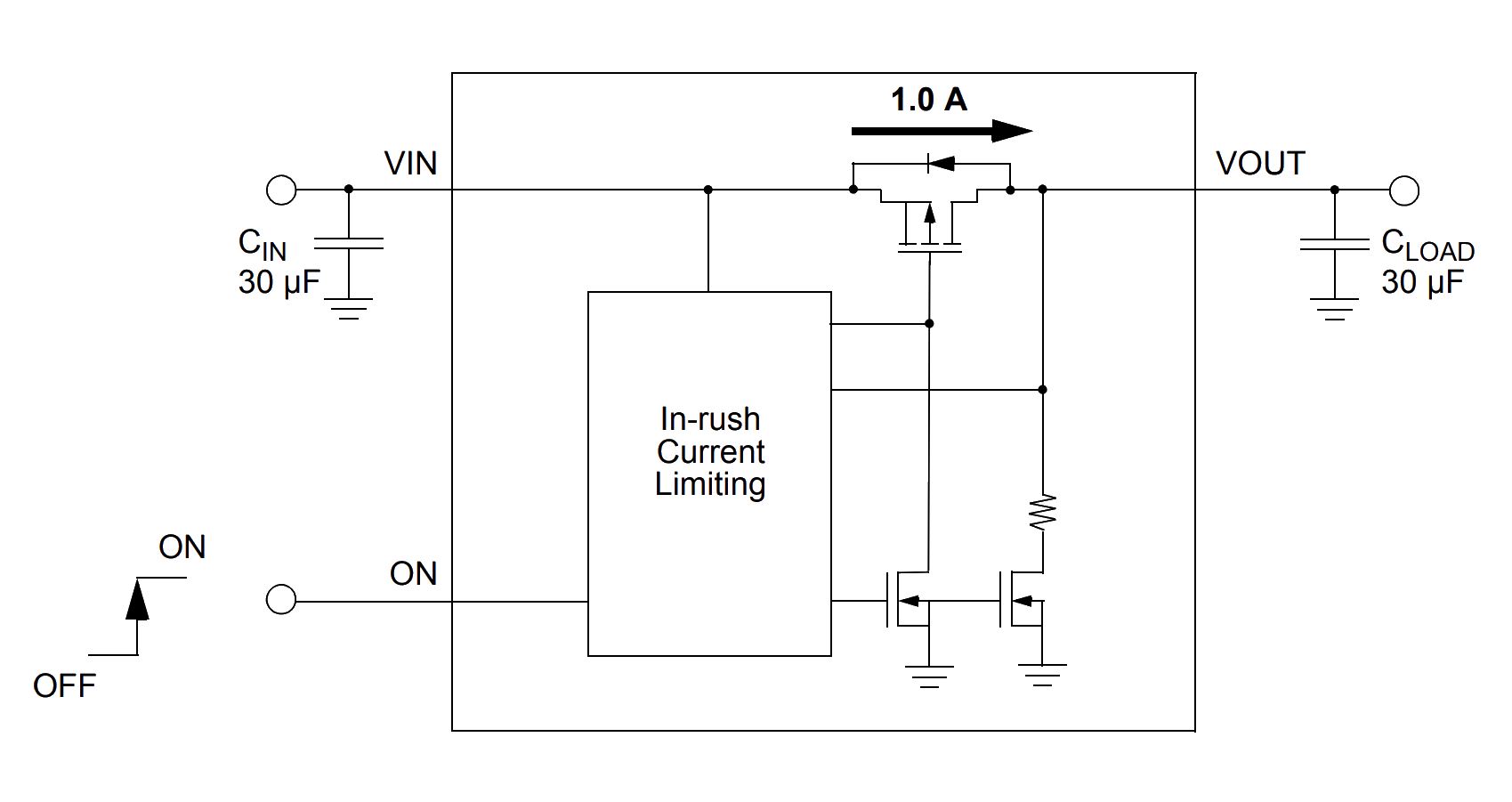

A 33 mΩ, 1 A pFET Load Switch with Controlled Inrush Current in a 0.64 mm² WLCSP
Operating from a 2.5 V to 5.5 V power supply, the SLG59M1730C is a self-powered, high-performance 33 mΩ, 1.0 A single-channel pFET load switch with a controlled VINinrush current profile. The SLG59M1730C’s low supply current and controlled VINinrush current profile makes it an ideal pFET load switch in small form-factor personal health monitor and watch applications. Using a proprietary MOSFET design, the SLG59M1730C achieves a low RDSONacross the entire input voltage range. Through the application of Dialog’s proprietary CuFET technology, the SLG59M1730C’s can be used in applications up to 1 A with a very-small 0.64 mm2 WLCSP form factor.
Features
Low RDSON: 33 mΩ
Continuous IDS: Up to 1.0 A
Wide Input Voltage Range: 2.5 V ≤ VIN≤ 5.5 V
Controlled VIN侵入当前配置文件保护锂蝙蝠teries
Integrated VOUT Discharge Resistor
Operating Temperature Range: -40°C to 85°C
Other Options Available
- Fixed Soft-start Control
- VOUT Discharge Disabled
- Reverse-voltage (VOUT-VIN) Detection
雷竞技安卓下载
Small Form-Factor
Personal Health Monitors
Watches
Package
WLCSP-4L (0.8 x 0.8 x 0.5 mm, 0.4 mm pitch)
Stay connected
Get in touch with us directly through our worldwide sales offices, or contact one of our global distributors and representatives.
Inquiries Distributors and Representatives Register for newslettersIntroduction to GreenFET Load Switches
Introduction to High Voltage GreenFET Load Switches
Load Switch Webinar Part 1
Load Switch Webinar Part 2
A 33 mΩ 1 A pFET Load Switch with Controlled Inrush Current in a 0.64 mm² WLCSP. Package: WLCSP-4 (0.8 x 0.8 mm).
Price table:
| Qty | 200-2,999 | 3,000 |
|---|---|---|
| Price | $0.218 | $0.174 |
Evaluation test board for SLG59M1730C
