AVD Module with Voice Data Stack


Whether you’re developing audio-, voice- or data-based wireless applications, the DA14AVDDECT offers you the fastest and easiest route to market. It combines everything you need for world-class wireless performance in a single compact module.

Fully RF tested and certified, it doesn’t require any in-depth RF knowledge or resources to use. Just drop it in and you’re ready to go.

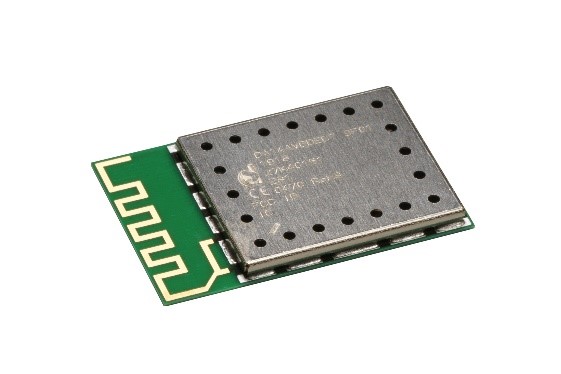

The Dialog DA14AVDDECT Audio Voice Data module is a complete solution for next-generation wireless applications. It contains all the hardware necessary, including a state-of-the-art DECT radio, a multi-core, power amplifier, stereo CODEC, battery management and onboard antenna. You can tailor the module to your target application area simply by downloading and installing one of our optimized software stacks who also supports over-the-air upgrades.

Features

Next-generation DECT radio performance

  • Multi-level modulation
  • Zero blind slot support

Extensive processing power

Hi-Fi audio support

Integrated antenna and support for optional external antenna

Battery management with charger and fuel gauge

Choice of voice and data or audio and data software stacks

雷竞技安卓下载

Conferencing systems

Intercom systems

  • Door entry
  • Elevator communication
  • 消防救援通信

Elderly Care: pendants with voice

Differences between the Voice Data Stack (AVD Module) and the Cordless Voice Module (CVM)

Voice Data Stack CVM
Data Rate 150kbit/s 54 kb/s
Number of PP in a conference 8s 4
Number of PP in PA/TG N/A N/A
Full Duplex / return channels 8 4
Voice/Audio Bandwidth 8kHz 8kHz
Codec G726, G722, BV32 G726, G722
Latency 10ms 10ms
Battery Charging NiMH / Li-Ion batteries 2 Cell NiMH
Available Interfaces UART (2), SPI, I2C, PCM/I2S, PDM, USB charging / FW, SE COdec, I/O UART, SPI、I2C、PCM, Single Ended / Differential Analog I/O

Every quarter, we bundle up the best technical info on our products, software development topics, trainings, events and deliver it to your inbox.

Sign me up

Stay connected

Get in touch with us directly through our worldwide sales offices, or contact one of our global distributors and representatives.

Inquiries Distributors and Representatives Audio & Voice portal
Product Briefs and Summaries
Name Date Version
AVD Product Brief(367.96 KB)
Datasheets
Name Date Version
DA14AVDDECT SF01 Datasheet(1.83 MB) 14/09/2020 2.1
User guides and manuals
Name Date Version
UM-D-005 DA14AVDDECTDEVKT Quick Start Guide(1.19 MB) 14/09/2020 1.1
