Eccentric Rotating Mass Motor Control

Eccentric Rotating Mass Motor Control

Adding vibration to your product is a great way to create a sensory rich user experience. The easiest method to accomplish this is to add a small eccentric rotating mass (ERM) motor. These motors use imbalanced weight attached to the shaft to create uneven centripetal force about the axis of the shaft.

Using GreenPAK™ with low dropout regulators (LDOs), provides a fully customizable, low-power solution to drive and control a wide variety of small ERM motors appropriate for devices such as mobile phones, game controllers, etc. The programmable digital and analog resources in GreenPAK make it easy to implement custom features to differentiate your haptic experience as well as protection features to ensure smooth and safe operation, including:

  • Custom vibration strength
  • Custom vibration patterns and timing
  • Braking
  • Custom motor kick-start and
  • Over-current/short circuit protection
  • Over-temp protection

GreenPAK Benefits for ERM Motor Control

  • Flexibility
    • GreenPAK VDD is 2.5 to 5.0 V
    • GreenPAK has integrated delays for programmable button de-bounce
    • GreenPAK’s Inter-Integrated Circuit (I2C) interface allows changes to vibration patterns and timing
    • GreenPAK general-purpose input/output (GPIO) routing is flexible – Ensuring the least complexity in PCB routing
  • Power Consumption
    • GreenPAK is low-power
  • System Stability
    • GreenPAK has integrated LDO protection
    • GreenPAK is Zero Code – Implementing features in hardware ensures stability
    • GreenPAK can integrate many components ensuring fewer points of failure

Vibration Patterning and Strength

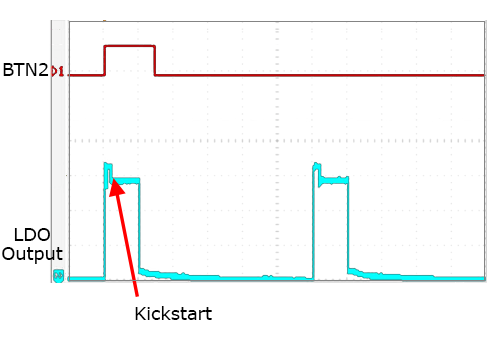

Using GreenPAK’s programmable digital and timing blocks it is possible to make a number of different vibration patterns. With the LDOs integrated into the GreenPAK, which can switch between two voltage outputs using digital logic and up to 32 different levels via I2C, it is also possible to create vibrations of different strengths.

Kickstart

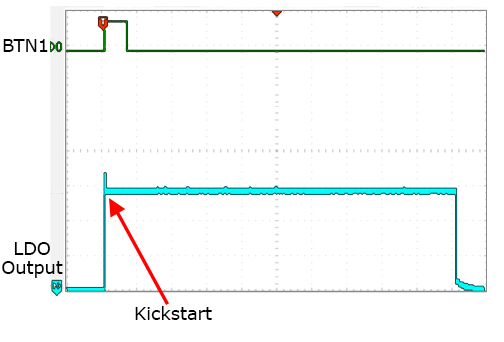

  • To quickly start an ERM motor, it is useful to drive it at a higher voltage for a short duration. This overcomes the momentum of the still mass and allows for cleaner vibration patterns.

Braking

  • Some ERM motors include a special pin for braking. Using digital logic and GreenPAK’s configurable GPIO, driving the braking pin anytime the motor should stop is easy.

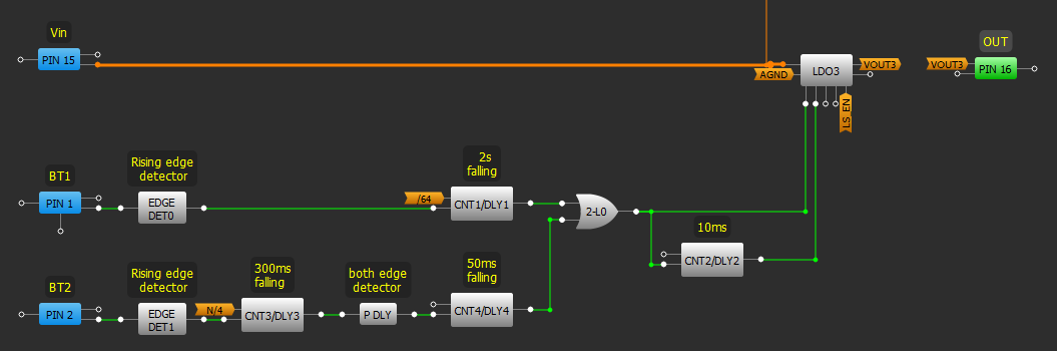

Pattern and Kickstart Circuit in GreenPAK

,

Protection

The LDOs in GreenPAK contain over-current and short circuit detection which will cause the LDO to shut down in the event of a failure. Additionally, using the integrated temperature sensor and programmable analog comparator (ACMP), it is easy to implement over-temperature shutdown as well.

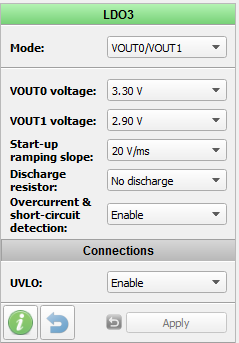

Overcurrent & Short Protection LDO Settings
Over-temperature Protection Circuit in GreenPAK
