Basic Sequencer

Timing Functions Application

Sequencers are used when a designer needs to sequentially activate different portions of a system. Specifically, this can be critical for applications that require several power rails.

Ingredients

Any GreenPAK
No other components are needed

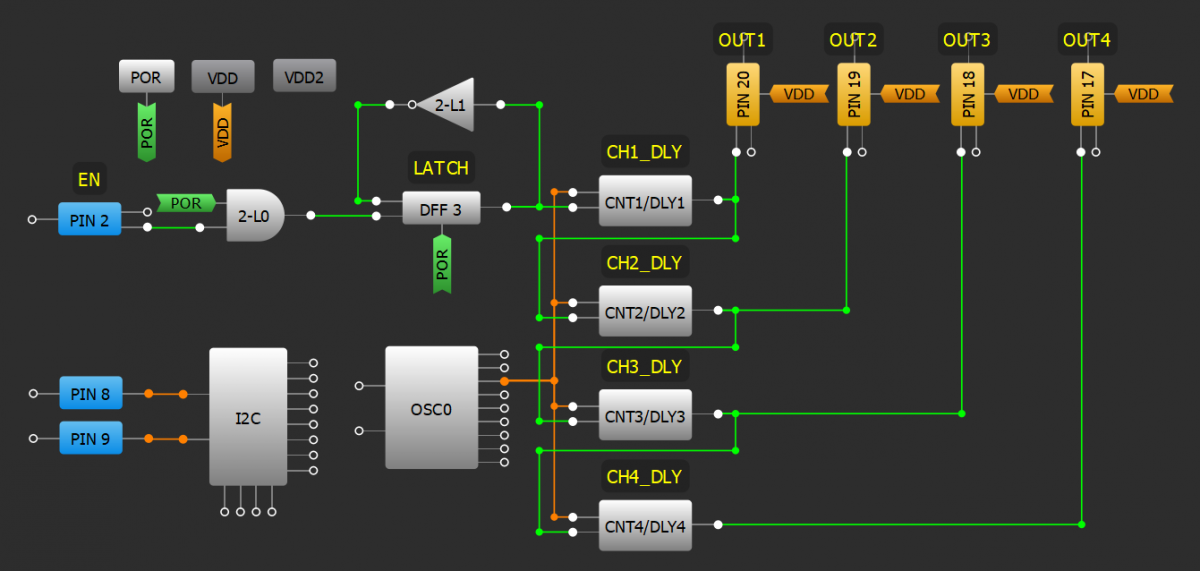

GreenPAK Diagram

Design Steps

Use LUTs to configure the desired start-up condition.
Use a latch or DFF to maintain the start-up signal so it can be read by DLY blocks.
Chain the Delays using Technique: Sequencing CNT/DLY Blocks.
Connect each delay channel to the desired output pin/s.

Resources

GreenPAK Designer files

Basic Sequencer GP(4.74 KB)
