中断控制器ller

Signal Conditioning Application

The GreenPAK can be configured to monitor multiple different interruptible signals and aggregate that information for the host processor to act upon. The µP or SOC can read via I2C the output of each DFF to determine the source of the fault

Ingredients

Any GreenPAK
No other components are needed

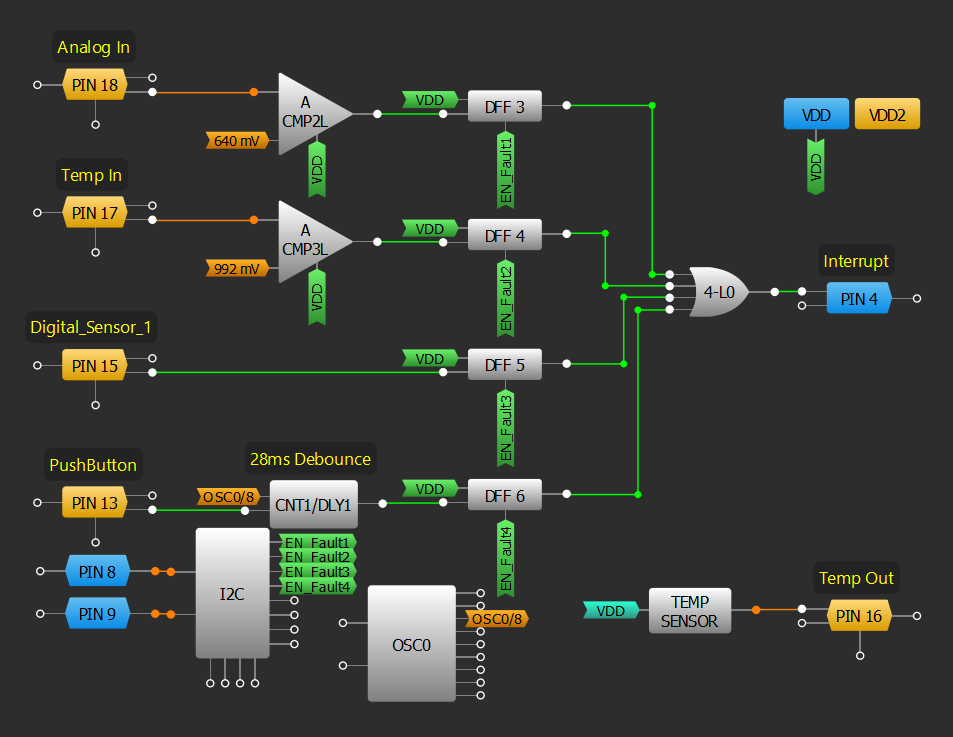

GreenPAK Diagram

Design Steps

Configure PINs # 16, 17, and 18 asAnalog Input/Output.
Configure levels of ACMPs to proper threshold.
Wire DFFs to OR gate and set PIN#04 as output.
Configure DLY1 to desired debounce time.

Resources

GreenPAK Designer files

中断控制器ller GP(4.75 KB)
