Global RC Oscillator Controller

Timing Functions Application

全球RC振荡器用于同步相乘iple devices. The resistive and capacitive elements can be variable for specific frequencies.

Ingredients

Any dual rail GreenPAK
Two resistors
One capacitor

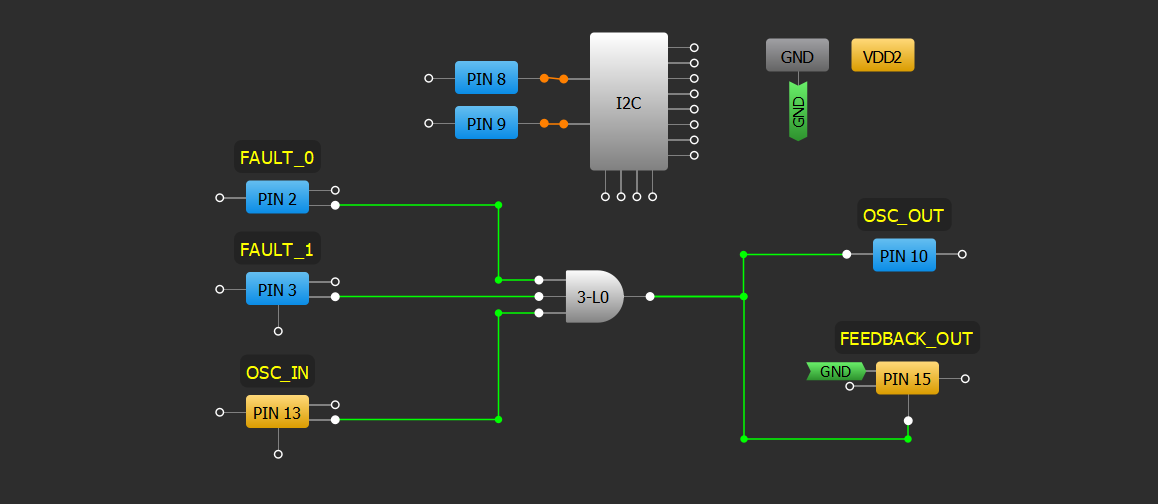

GreenPAK Diagram

Design Steps

Configure pins as inputs and outputs of oscillator. Feedback output must be a1x 3-State Output.
Configure logic to enable the path between the input and output of the oscillator.
Connect resistor and capacitor to feedback output node. The other resistor node should be connected to VDD2 and the other capacitor node should be connected to ground.
Connect the other resistor in between VDD and VDD2.
Connect the feedback output to the oscillator input.
